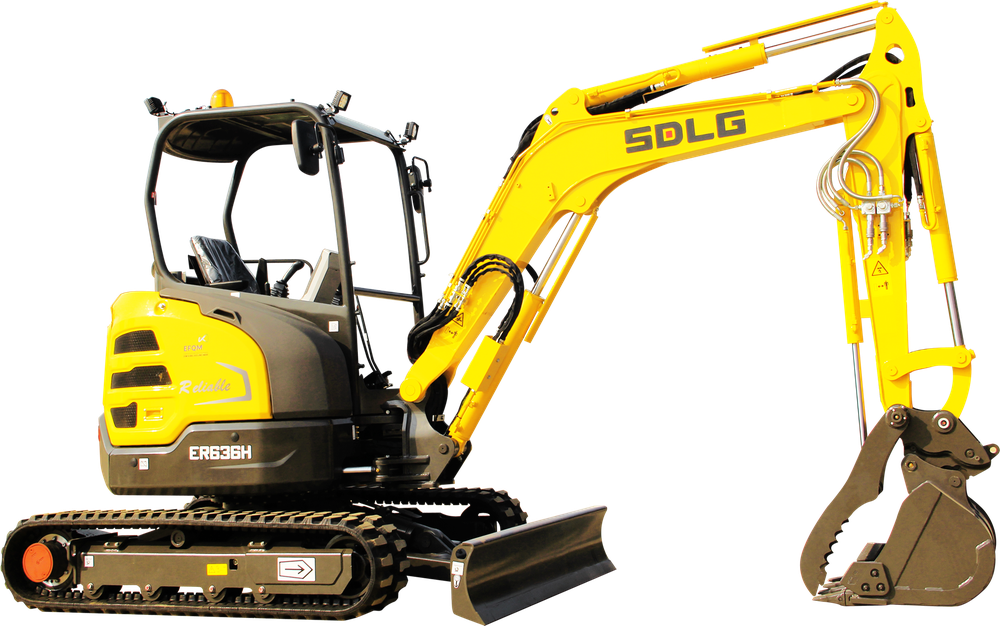

Excavator ER636H
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
Technical Parameter
| Total mass (kg) | 2945kg |
| Bucket capacity | 0.076mu00b3 |
| Bucket capacity range | 0.07-0.16 |
| Average ground pressure | 34.8mm |
| Circumstance temperature | nan |
| Slewing speed | 9r/min |
| Traveling speed (low/high) | 2.4/4km/h |
| Maximum digging force | 23.5/32kN |
| Altitude | 1200m |
| Wading depth | 391mm |
| Engine model/Drive Motor Model | 3TNV88-ZCSCLG |
| Engine power | 20.4KW |
| Maximum flow rate | 88L/min |
| Fuel specifications and filling amount | 33L |
| Overall length | 4850mm |
| Overall width | 1700mm |
| Overall height | 2745mm |
| Boom length | 2450mm |
| Wheel track | 1400 |
| Arm length | 1400mm |
| wheelbase | 1685mm |
| Crawler wheelbase/Wheelbase | 1685mm |
| Maximum digging radius | 5340mm |
| Maximum digging depth | 3100mm |
| Maximum discharge height | 3380mm |
| Overall length during transfer | 4850mm |
| Shovel width (with band edge) | 626mm |
| Maximum digging depth under length of bottom surface of 2.5m | 2570mm |
| Maximum digging height | 4700mm |
| Contour dimension of complete machine (transfer position) | 4850u00d71700u00d72745mm |
| Overall width of upper assembly | 1500 |
| Overall width of chassis | 1700mm |
| Overall height to cab top | nan |
| Rear slewing radius | 850mm |
| Overall height to hood top | nan |
| Ground clearance of upper assembly | 575mm |
| Overall length of crawler | 2170mm |
| Wheel track of crawler/Wheel track | 1400mm |
| Track shoe width | 300mm |
| Minimum ground clearance | 220mm |
| Overall height of working mechanism during transfer | 1620mm |
| Maximum digging radius of reference ground | 5220mm |
| Maximum vertical digging depth | 2100mm |
| Minimum front turning radius | 2275mm |
