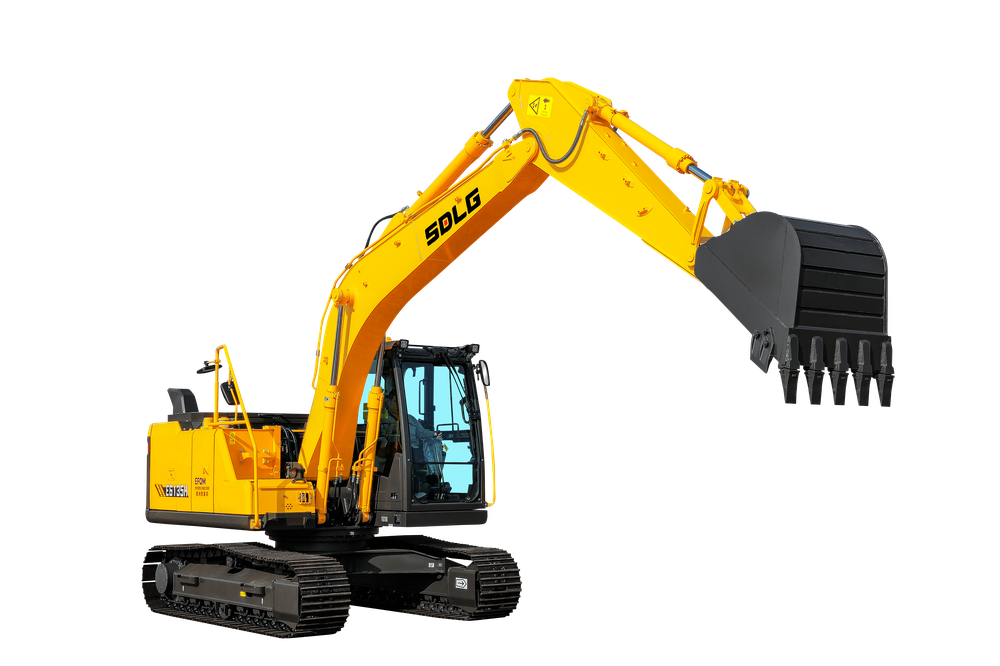

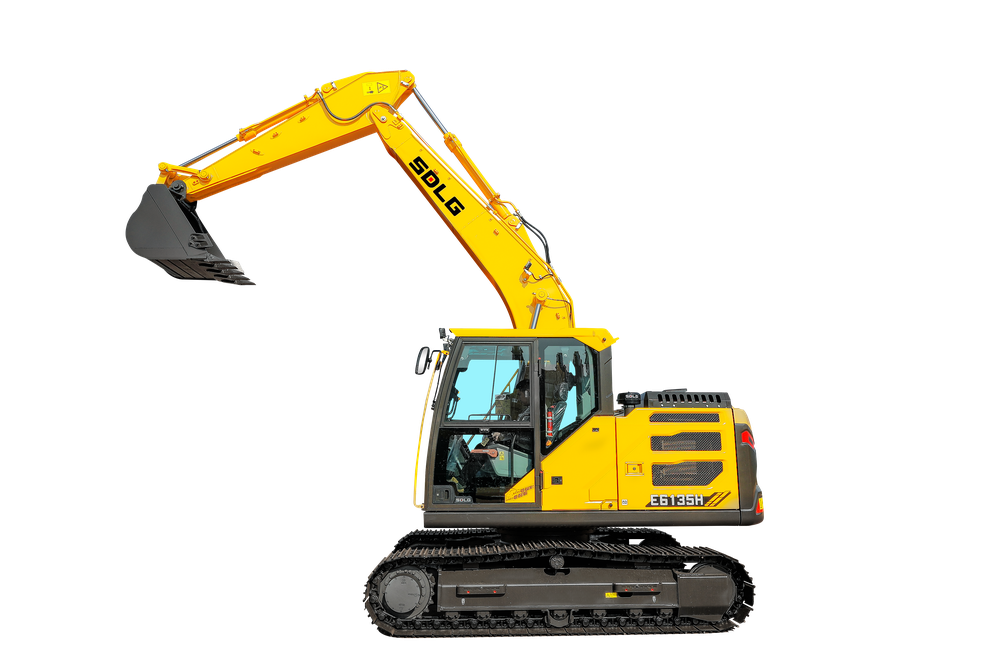

Excavator E6135H
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
Technical Parameter
| Total mass (kg) | 12800kg |
| Bucket capacity | 0.55mu00b3 |
| Bucket capacity range | nan |
| Average ground pressure | 40.9mm |
| Circumstance temperature | nan |
| Slewing speed | 10.3r/min |
| Traveling speed (low/high) | 3.0/5.1km/h |
| Maximum digging force | 79.5kN |
| Altitude | 2000m |
| Wading depth | 596mm |
| Engine model/Drive Motor Model | BF4M2012-11T2 |
| Engine power | 80KW |
| Maximum flow rate | 2u00d7130+20L/min |
| Fuel specifications and filling amount | 290L |
| Overall length | 7750mm |
| Overall width | 2490mm |
| Overall height | 2830mm |
| Boom length | 4600mm |
| Wheel track | 1990 |
| Arm length | 2500mm |
| wheelbase | 2870mm |
| Crawler wheelbase/Wheelbase | 2870mm |
| Maximum digging radius | 8330mm |
| Maximum digging depth | 5530mm |
| Maximum discharge height | 5980mm |
| Overall length during transfer | 7750mm |
| Shovel width (with band edge) | 1100mm |
| Maximum digging depth under length of bottom surface of 2.5m | 5310mm |
| Maximum digging height | 8420mm |
| Contour dimension of complete machine (transfer position) | 7750u00d72490u00d72830mm |
| Overall width of upper assembly | 2490 |
| Overall width of chassis | 2490mm |
| Overall height to cab top | 2810mm |
| Rear slewing radius | 2250mm |
| Overall height to hood top | 2449mm |
| Ground clearance of upper assembly | 900mm |
| Overall length of crawler | 3610mm |
| Wheel track of crawler/Wheel track | 1990mm |
| Track shoe width | 500mm |
| Minimum ground clearance | 430mm |
| Overall height of working mechanism during transfer | 2830mm |
| Maximum digging radius of reference ground | 8190mm |
| Maximum vertical digging depth | 5060mm |
| Minimum front turning radius | 2630mm |
