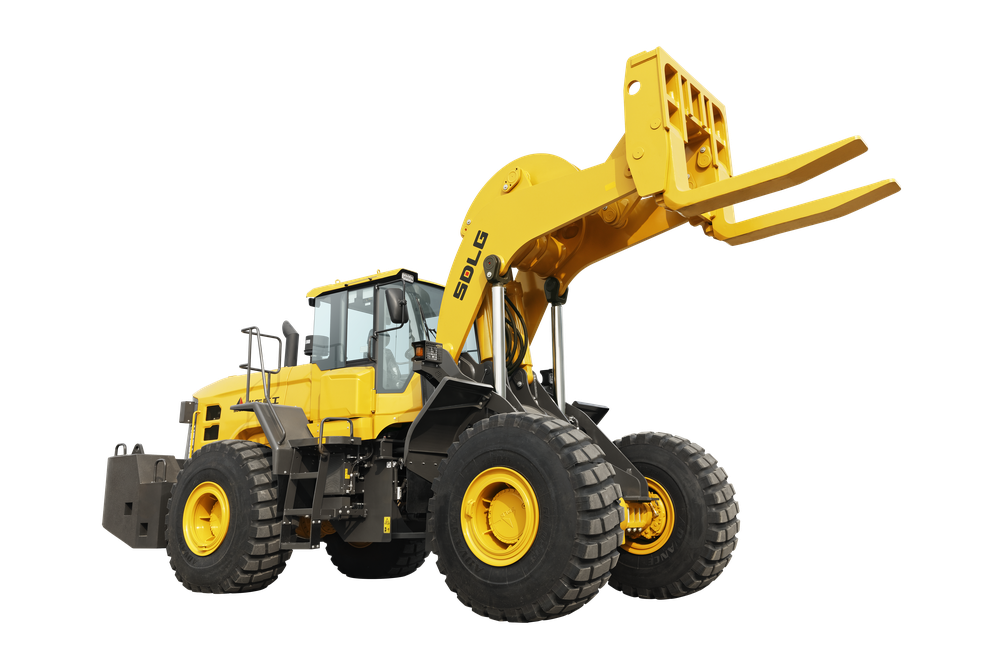

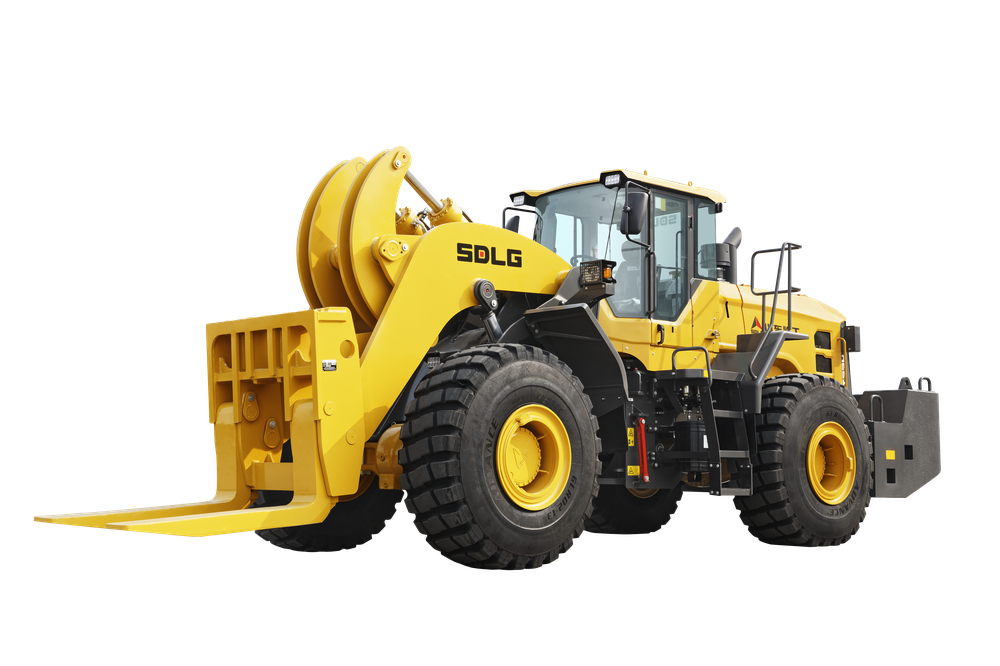

Marble Forklift LFT33H
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features
A passion for performance.
At SDLG Construction Equipment, we’re not just coming along for the ride. Developing products and services that raise productivity – we are confident we can lower costs and increase profits for industry experts. Part of the LG Group, we are passionate about innovative solutions to help you work smarter – not harder.

(I) Superior Feature
1. High lifting force
2. Good stability
3. Large fork angle
4. Good visibility for loading & unloading
(II) Durability
1. Special high-strength working device
2. Reinforced widened heavy-duty frame
3. Brake circulation system, guarantee brake performance
4. Mining heavy-duty tire
(III) User-friendly
1. Large operating space in cab
2. Rearview camera
3. LED working lights
4. Centralized lubrication
Technical Parameter
Operating weight 35660KG
Loading capacity 33000KG
Max. tractive force 228KN
Engine model WP10HG260E472
Rated power 192KW
Transmission type SDLG TransmissionVRT205uff08VOLVO technologyuff09
Gears F4 R4
Fuel tank 350L
Overall length 9785mm
Overall width 3115mm
Overall heigth 3510mm
Ground clearance 330mm
Wheel base 4050mm
Fork horizontal lifting high 3600mm
Max. lifting high 4165mm
